GPS pet Tracker, Mini GPS GSM Tracker,Mini Portable Global personal gps traker PT80 with multi-alarms

Specifications

1.GPS/GSM/GPRS tracking device
2.Real-time tracking and security
3.Good sensitivity and stable performance
4.CE & FCC & RoHS

GPS pet Tracker, Mini GPS GSM Tracker,Mini Portable Global personal gps traker PT80 with multi-alarms

Preview:

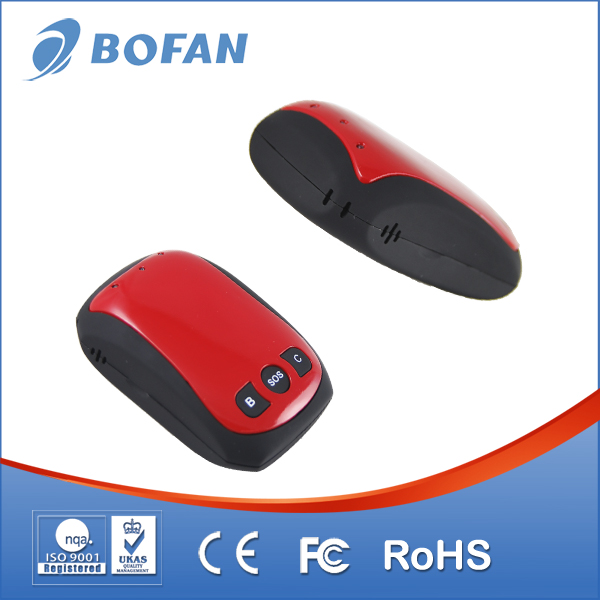

 PT80 is a compact size GPS tracker specially designed for tracking kids, elder or people who need tracking service. With superior GPS and GPRS  modules, PT80 has good sensitivity and stable performance. It can get accurate GPS fix even in remote places.





Features:

1. GSM+GPS tracking

2. TCP/UDP data transmit

3. Tracking by time interval

4. SOS alarm

5. Geo-fence alarm

6. Over-speed alarm

7. Low power alarm

8. Mileage and GPRS report by distance

9. Get street address by SMS request

10. Get Google map link by SMS request

11. Save 50% GPRS cost with Bofan Smart Report Tech

12. Support shake alarm13. Support voice monitoring

14. Mileage and GPRS report by distance

15. Available to set different alarm notification ways when alarm (sending alarm SMS, call, platform)

Specifications:



Items	Specifications
Weight	0.22KG
Dimensions	65(L)x 42(W) x 20(H) mm
Input Voltage	DC 9V~36V/1.5A
Back-up Battery	1000mAh/3.7v
Power Consumption	50mA standby current
Operating Temperature Range	-20°C to +60°C
Storage Temperature Range	-20°C to +70°C
Humidity	Up to 75% non
Back-up Battery work time	8~24 hours depends on preset report interval
GSM Frequency	GSM 850/900/1800/1900MHz
GPS Chip	SiRF Star III
GPS Sensitivity	-159dBm
GPS Channels	20 parallel
Cold Start	35 sec @ open sky(Typical)
Warm Start	35 sec @ open sky(Typical)
Hot Start	1 sec @ open sky(Typical)
Positioning Accuracy	10meters at 2D RMS
GPS Antenna	Internal
GSM Antenna	Internal
Microphone	Yes
Speaker	No
LED	3 LED lights to show GPS,GSM and Power
Memory	Save 3,000 waypoints
Motion sensor	Yes
I/O	1 USB Port
Certificate	CE,FCC,ROHS



Tracking system:

Applications:

Quality & Factory:

The testing phases of Bofan trackers contains 2 parts: R&D testing & production testing.

R & D testing includes upgrade testing, signal testing, functional testing, performance testing, installation testing and safety testing.

Production testing includes 3 phases as follows: the first testing phases, aging test phases, and secondary testing phases. Internal battery, FLASH chip, voltage regulator IC, Switching on/off Power Supply, MCU, GPS / GSM modules, basic settings, as well as the appearance of tracker will be tested during Production testing period.
